Parameter

Large package Needle

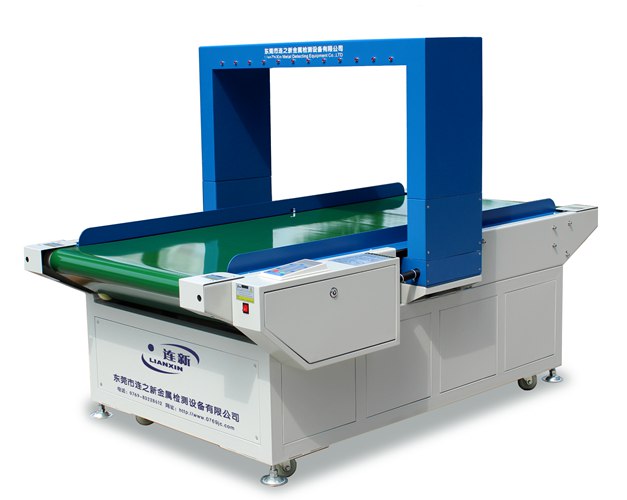

Model：DN-8500-II8040

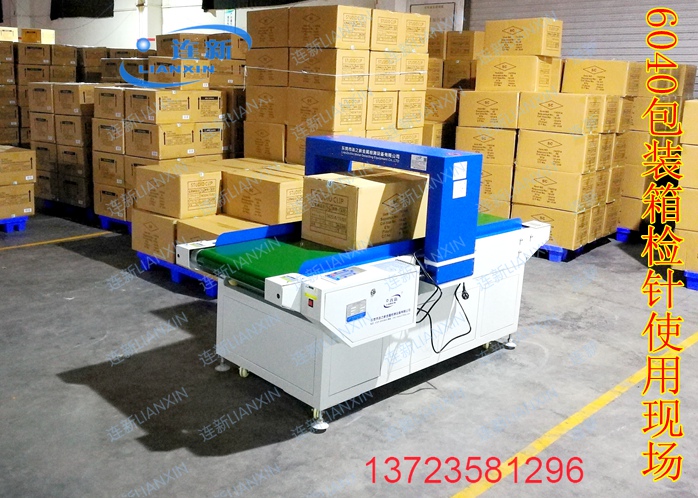

Needle Detector For Carton Big boxes conveyor needle detector machine is a special custom insoles shoes material used to detect the whole package of large packaging check needle machine, and can be used to check for toys, clothing, shoes, plastic products, chemical industry, leather, knitting and other large, heavy packaging need to detect ferromagnetic metal impurity industry, used to detect inclusions or lost in the raw material or product needle, nails, screws, blades, tools, wire and other metal foreign body. Can choose handbags and pigment dyeing and printing industry effect balanced functions were ruled out. Can also be used for food processing enterprises need to rule out only about the detection of ferromagnetic metal aluminum piece packing

Tel：13723581296

Explanation

 Main features:

1, the needle detector machine adopts Japanese technology;

2, 80% main parts imported IC SMT assembly, thickening aggravating frame design, exquisite painting spraying;

3, the digital computer control sensitivity setting 1-100 grade stepless adjustment, high and low sensitivity to the 120 level adjustment;

4, accurate identification indicating metal location;

5, strong bearing quality, 30 kg goods smooth operation, unique pigment identification mode;

6, strong anti-jamming performance, detection zone 12 PM parts sensitivity equilibrium, 12 lights a precise instructions;

7, detect metal foreign body acousto-optic alarm and automatically return to stop machine, manual reversing function;

8, support unlimited widened, heightening, compound and other non-standard custom design.


Technical parameters:

Test method: magnetic field induction, computer detector.

Test height: 400 mm

The detection sensitivity: Φ 4.0 or higher

Detection width: 800 mm - not the standard size (custom).

Adjustable induction to adjust: 1-120 grade (A standard model B equilibrium mode)

Alarm way: sound and light alarm and shutdown.

Power source: Ac220V 50 to 60 hz.

Power: 180 w.

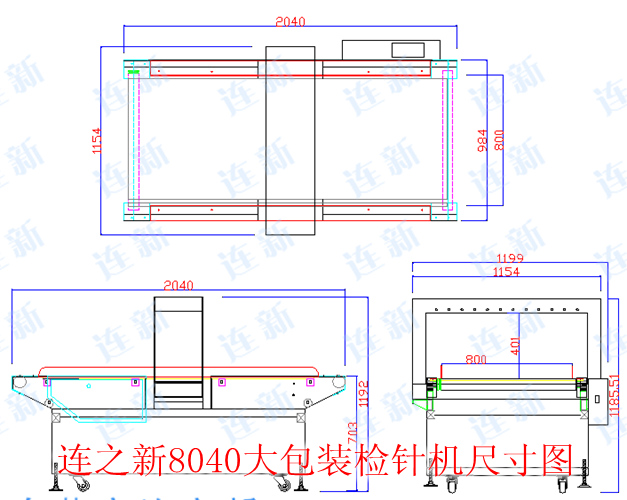

The fuselage size: 2050 x 1200 x 1250 wide long high.

Net weight: greater than 400 kg.

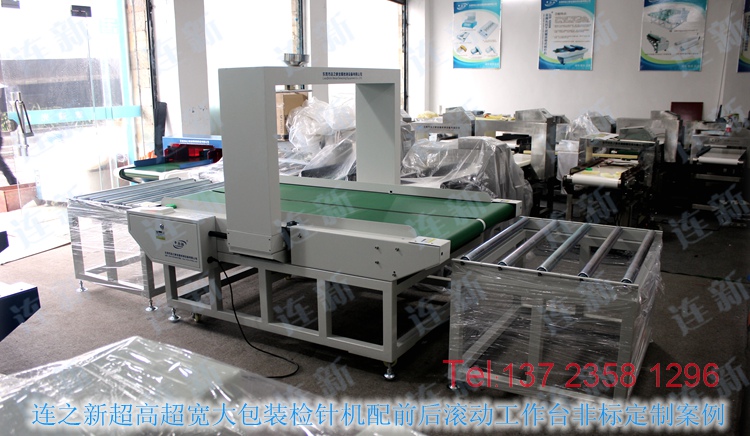

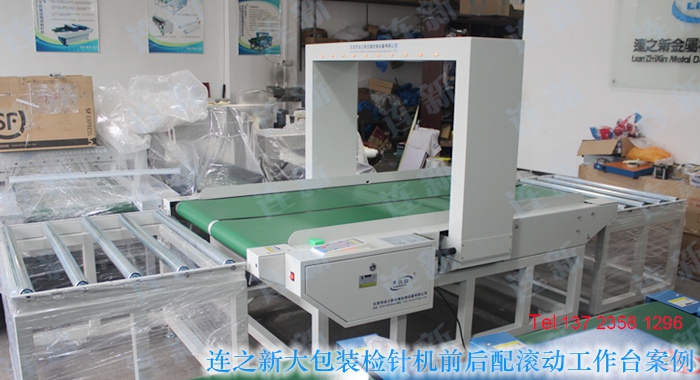

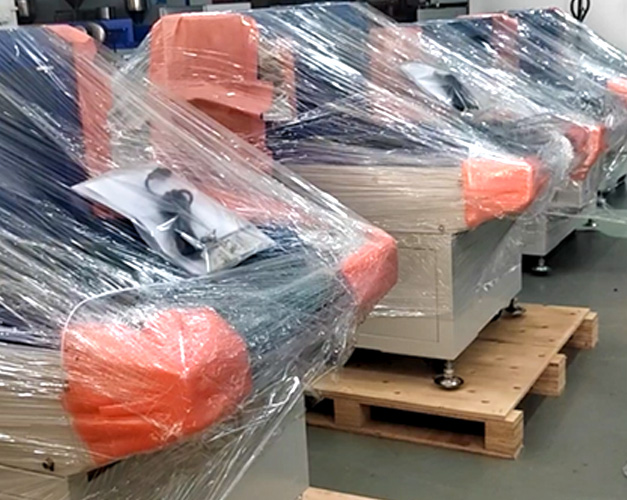

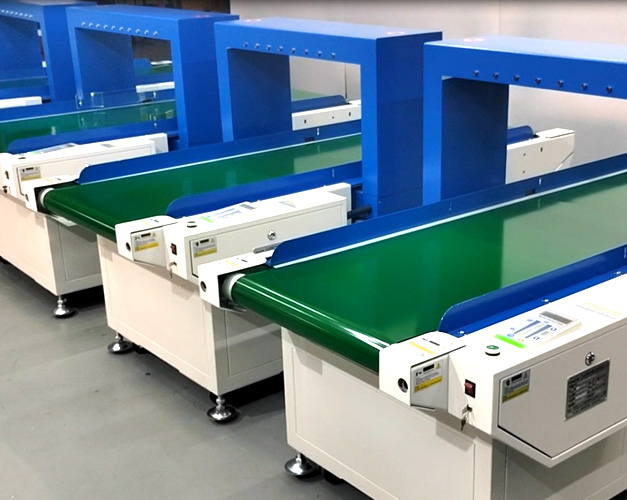

其他定制规格图片：
